Safety & Relief Valves

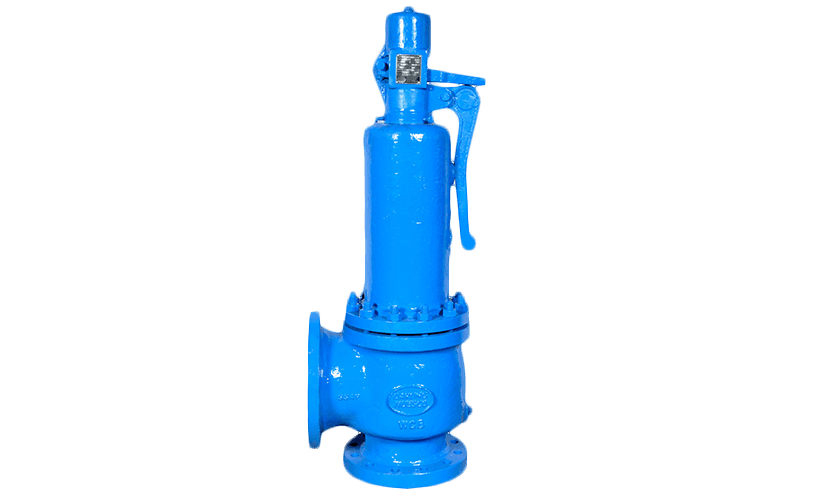

Safety Relief Valve
Spring-loaded safety relief valve that protects boilers and vessels from overpressure.
Specifications
- Body material
- Cast steel (WCB)
- Trim
- Stainless steel
- End connection
- Flanged inlet / outlet
- Set pressure
- Factory set & tested
- Size range
- DN15 – DN100
- Service
- Steam, air, hot water
Overview
A spring-loaded, flanged safety relief valve that lifts at a set pressure to protect boilers, pressure vessels and steam headers. Each valve is set, gagged and pressure-tested before dispatch, with WCB body and stainless trim for steam and hot-water service. The lift lever allows routine manual testing on site.
